| Chip : | Apple M4 Max chip,14-core CPU with 10 performance cores and 4 efficiency cores 32-core GPU Hardware-accelerated ray tracing 16-core Neural Engine 410GB/s memory bandwidth |
| Media Engine : | Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW Video decode engine Two video encode engines Two ProRes encode and decode engines AV1 decode |
| Configurable to: : | M4 Max with 16‑core CPU, 40‑core GPU and 16‑core Neural Engine (546GB/s memory bandwidth) |
| Apple M3 Ultra chip : | 28-core CPU with 20 performance cores and 8 efficiency cores 60-core GPU Hardware-accelerated ray tracing 32-core Neural Engine 819GB/s memory bandwidth |
| Media Engine : | Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW Two video decode engines Four video encode engines Four ProRes encode and decode engines AV1 decode |
| Configurable to: : | M3 Ultra with 32‑core CPU, 80‑core GPU and 32‑core Neural Engine (819GB/s memory bandwidth) |
| Apple Intelligence1 : | Apple Intelligence is the personal intelligence system that helps you write, express yourself and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple. |
| Memory : | Apple M4 Max chip 36GB unified memory |
| Configurable to: : | 48GB, 64GB or 128GB (M4 Max with 16-core CPU and 40‑core GPU) |
| Apple M3 Ultra chip : | 96GB unified memory |
| Configurable to: : | 256GB |
| Storage2 : | Apple M4 Max ch512GB SSDip |
| Configurable to: : | 1TB, 2TB, 4TB or 8TB |
| Apple M3 Ultra chip : | 1TB SSD |
| Configurable to: : | 2TB, 4TB, 8TB or 16TB |
| Apple M4 Max chip : | Simultaneous support for up to five displays: Up to four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 144Hz over HDMI Up to two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI |
| Apple M3 Ultra chip : | Simultaneous support for up to eight displays: Eight displays with up to 6K resolution at 60Hz or 4K resolution at up to 144Hz Four displays with up to 8K resolution at 60Hz or 4K resolution at up to 240Hz |
| Thunderbolt 5 digital video output : | Support for native DisplayPort 2.1 output over USB‑C |
| HDMI display video output : | Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz Support for variable refresh rate (VRR), HDR and multi-channel audio |
| Audio : | Built-in speaker 3.5mm headphone jack with advanced support for high-impedance headphones HDMI port supports multi-channel audio output |

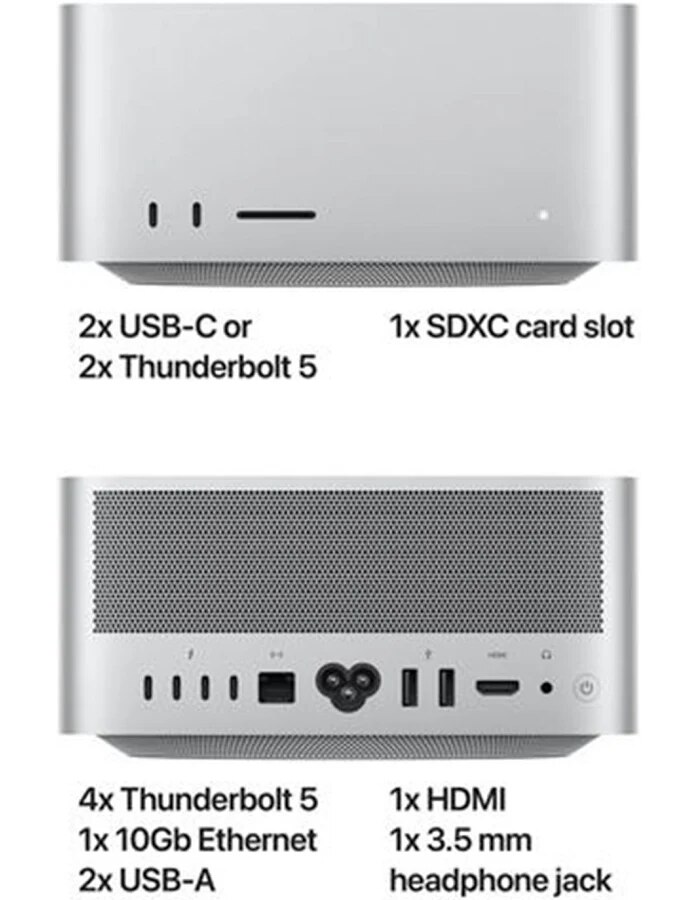

| Connections and Expansion : | Four Thunderbolt 5 (USB‑C) ports with support for: Thunderbolt 5 (up to 120Gb/s) USB 4 (up to 120Gb/s) USB 3 (up to 10Gb/s) DisplayPort 2.1 Two USB 3 (USB‑A) ports (up to 5Gb/s) HDMI 2.1 port 10Gb Ethernet 3.5mm headphone jack On front (M4 Max): Two USB‑C ports (up to 10Gb/s) SDXC card slot (UHS-II) On front (M3 Ultra): Two Thunderbolt 5 ports (up to 120Gb/s) SDXC card slot (UHS-II) |
| Communications : | Wi‑Fi Wi‑Fi 6E (802.11ax)3 Bluetooth Bluetooth 5.3 Ethernet 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb and 10Gb Ethernet using RJ‑45 connector) |
| Height : | 9.5 cm (3.7 inches) |
| Width : | 19.7 cm (7.7 inches) |
| Depth : | 19.7 cm (7.7 inches) |
| Weight (M4 Max) : | 2.74 kg (6.1 pounds)4 |
| Weight (M3 Ultra) : | 3.64 kg (8.0 pounds)4 |
| Line voltage : | 100–240V AC |
| Frequency : | 50Hz to 60Hz, single phase |
| Built-in Apps6 : | App Store Books Calendar Contacts FaceTime Find My Freeform GarageBand Home iMovie iPhone Mirroring Keynote Mail Maps Messages Music News Notes Numbers Pages Passwords Photo Booth Photos Podcasts Preview QuickTime Player Reminders Safari Shortcuts Stocks Time Machine Tips TV Voice Memos Weather |
| Features include: : | Voice Control VoiceOver Zoom Increase Contrast Reduce Motion Siri and Dictation Switch Control |
| Accessibility : | Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility and learning, you can create and do amazing things. |
| Operating System : | macOS |
| In the Box : | Mac Studio Power lead |
| Operating altitude : | tested up to 5,000 metres (16,400 feet) |
| Relative humidity : | 5% to 95% non-condensing |
| Storage temperature : | –40° to 47° C (–40° to 116° F) |
| Operating temperature : | 10° to 35° C (50° to 95° F) |
| Maximum continuous power : | 480W |
| Frequency : | 50Hz to 60Hz, single phase |
| Line voltage : | 100–240V AC |
| Weight (M3 Ultra) : | 3.64 kg (8.0 pounds)4 |
| Weight (M4 Max) : | 2.74 kg (6.1 pounds)4 |
| Depth : | 19.7 cm (7.7 inches) |
| Width : | 19.7 cm (7.7 inches) |
| Height : | 9.5 cm (3.7 inches) |
| Communications : | Wi‑Fi Wi‑Fi 6E (802.11ax)3 Bluetooth Bluetooth 5.3 Ethernet 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb and 10Gb Ethernet using RJ‑45 connector) |
| Connections and Expansion : | Four Thunderbolt 5 (USB‑C) ports with support for: Thunderbolt 5 (up to 120Gb/s) USB 4 (up to 120Gb/s) USB 3 (up to 10Gb/s) DisplayPort 2.1 Two USB 3 (USB‑A) ports (up to 5Gb/s) HDMI 2.1 port 10Gb Ethernet 3.5mm headphone jack On front (M4 Max): Two USB‑C ports (up to 10Gb/s) SDXC card slot (UHS-II) On front (M3 Ultra): Two Thunderbolt 5 ports (up to 120Gb/s) SDXC card slot (UHS-II) |
| Audio : | Built-in speaker 3.5mm headphone jack with advanced support for high-impedance headphones HDMI port supports multi-channel audio output |
| HDMI display video output : | Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz Support for variable refresh rate (VRR), HDR and multi-channel audio |
| Thunderbolt 5 digital video output : | Support for native DisplayPort 2.1 output over USB‑C |
| Apple M3 Ultra chip : | Simultaneous support for up to eight displays: Eight displays with up to 6K resolution at 60Hz or 4K resolution at up to 144Hz Four displays with up to 8K resolution at 60Hz or 4K resolution at up to 240Hz |
| Apple M4 Max chip : | Simultaneous support for up to five displays: Up to four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 144Hz over HDMI Up to two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI |
| Configurable to: : | 2TB, 4TB, 8TB or 16TB |
| Apple M3 Ultra chip : | 1TB SSD |
| Configurable to: : | 1TB, 2TB, 4TB or 8TB |
| Storage2 : | Apple M4 Max ch512GB SSDip |
| Configurable to: : | 256GB |
| Maximum continuous power : | 480W |
| Operating temperature : | 10° to 35° C (50° to 95° F) |
| Storage temperature : | –40° to 47° C (–40° to 116° F) |
| Relative humidity : | 5% to 95% non-condensing |
| Operating altitude : | tested up to 5,000 metres (16,400 feet) |
| In the Box : | Mac Studio Power lead |
| Operating System : | macOS |
| Accessibility : | Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility and learning, you can create and do amazing things. |
| Features include: : | Voice Control VoiceOver Zoom Increase Contrast Reduce Motion Siri and Dictation Switch Control |
| Built-in Apps6 : | App Store Books Calendar Contacts FaceTime Find My Freeform GarageBand Home iMovie iPhone Mirroring Keynote Mail Maps Messages Music News Notes Numbers Pages Passwords Photo Booth Photos Podcasts Preview QuickTime Player Reminders Safari Shortcuts Stocks Time Machine Tips TV Voice Memos Weather |
