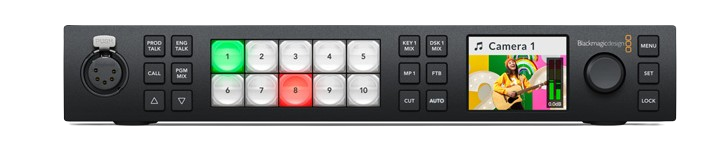

ATEM 1 M/E Constellation HD is a high definition live production switcher packed with advanced features! The single M/E design includes 10 standards converted 3G‑SDI inputs and 6 independent 3G‑SDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, multiview and more! Total Video Inputs 10 Total Video Outputs 6 SDI Rates 1.5G, 3G Total Audio Inputs 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback. Total Audio Outputs 1 x 5 pin XLR Talkback. SDI Audio Inputs 8 Ch embedded audio on all SDI inputs. SDI Audio Outputs 16 Ch embedded audio on all SDI outputs. Timecode Connections None Reference Input Tri-Sync or Black Burst. Video Input Re-Sync On all 10 inputs. Frame Rate and Format Converters On all 10 inputs. SDI Aux Outputs Any of the 6 SDI outputs. SDI Preview Outputs Any of the 6 SDI outputs. SDI Program Outputs Any of the 6 SDI outputs. Down Converted SDI Program Output None Webcam Output 1 x USB-C supporting 720p or 1080p at PGM frame rate. Total Multi Views 1 x 3G-SDI Control Panel Connection Ethernet. Direct connection between panel and chassis, or via network. Internal Timecode Generator Yes Talkback RJ45 for 3rd party talkback systems. Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). Ethernet Supports 10/100/1000 BASE-T. Computer Interface 1 x USB-C supports USB 2.0
