| SDI Loop Outputs : | 3 |
| SDI Outputs : | 3 |
| SDI Audio Inputs : | 16 channels embedded audio. |
| SMPTE 2110 Input / Output : | 10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data. |
| 10G Ethernet Port : | 1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T. |
| Reference Output : | Tri-Sync or Black Burst. |
| SMPTE 2110 Input / Output 10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data. 10G Ethernet Port 1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T. Reference Output Tri-Sync or Black Burst. Computer Interface : | USB-C for updates, configuration and control. |
| HD Video Standards : | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| SDI Compliance : | SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601. |
| SDI Metadata Support : | RP 188/SMPTE 12M-2 and closed captioning. |
| Audio Sampling : | Television standard sample rate of 48 kHz and 24 bit. |
| Color Precision : | 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. |
| IP Video Compliance : | SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities |
| Warranty : | 1 Year Limited Manufacturer's Warranty |
| Relative Humidity : | 0% to 90% non-condensing |
| Storage Temperature : | 20° to 60° C (-4° to 140° F) |
| Operating Temperature : | 5° to 40 ° C (32° to 104° F) |
| Power Inputs : | 1 x IEC C14 socket for AC power. 1 x RJ45 Ethernet connector for power from PoE+ power supplies. |
| Power Usage : | 20W |
| Power Inputs : | 1 x IEC C14 socket for AC power. 1 x RJ45 Ethernet connector for power from PoE+ power supplies. |
| Power Supply : | 1 x Internal 100 - 240V AC 50/60Hz. |

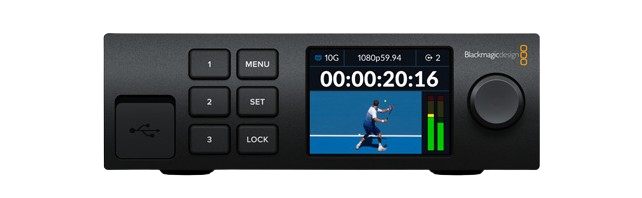

| Display : | Built in 2.2 inch LCD for video, video standard, audio and timecode monitoring plus menu settings. |
| Control : | Built in Control Panel 6 buttons with spin knob control and 2.2 inch color display for device control and menu settings. External Control RJ-45 10Gb/s Ethernet and USB-C |
| IP Video Compliance : | SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities |
| Color Precision : | 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. |
| Audio Sampling : | Television standard sample rate of 48 kHz and 24 bit. |
| Control : | Built in Control Panel 6 buttons with spin knob control and 2.2 inch color display for device control and menu settings. External Control RJ-45 10Gb/s Ethernet and USB-C |
| Display : | Built in 2.2 inch LCD for video, video standard, audio and timecode monitoring plus menu settings. |
| Power Supply : | 1 x Internal 100 - 240V AC 50/60Hz. |
| Power Inputs : | 1 x IEC C14 socket for AC power. 1 x RJ45 Ethernet connector for power from PoE+ power supplies. |
| Power Usage : | 20W |
| Power Inputs : | 1 x IEC C14 socket for AC power. 1 x RJ45 Ethernet connector for power from PoE+ power supplies. |
| Operating Temperature : | 5° to 40 ° C (32° to 104° F) |
| Storage Temperature : | 20° to 60° C (-4° to 140° F) |
| Relative Humidity : | 0% to 90% non-condensing |
| Warranty : | 1 Year Limited Manufacturer's Warranty |
