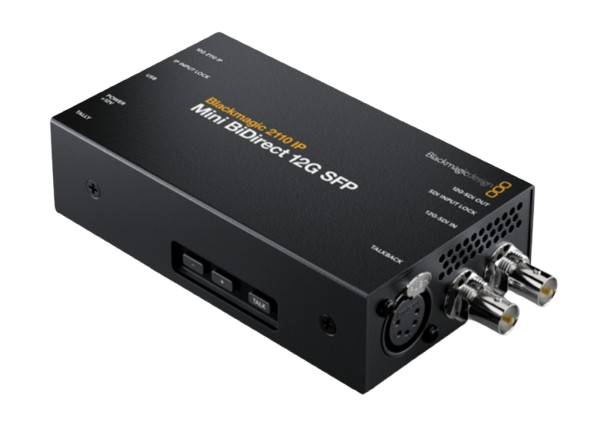

IMPORTANT: kindly before placing an order either call or email us at: 9821906900, sales3@aaamedia.co.in Converts all video standards up to 2160p60. Includes 5-pin XLR talkback headset connection. SDI input for program return with integrated tally light. Works with 10G Ethernet or 12G-SDI optical SFP modules.
| SDI Video Outputs : | 1 |
| SDI Rates : | 270Mb, 1.5G, 3G, 6G, 12G. |
| SMPTE ST-2110 IP Video Inputs/Outputs : | 1 x 10G Ethernet |
| Analog Audio Inputs : | 1 x 5 pin XLR Talkback. |
| Analog Audio Outputs : | 1 x 5 pin XLR Talkback. |
| SDI Audio Inputs : | 16 Ch embedded audio on SDI input. |
| SDI Audio Outputs : | 16 Ch embedded audio on SDI loop output. |
| SMPTE ST 2110 IP Audio Inputs : | 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. |
| SMPTE ST 2110 IP Audio Outputs : | 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. |
| Multi Rate Support : | Auto detection of SD, HD, 2K, Ultra HD and 4K. |
| Reclocking : | Yes |
| Ethernet : | 1 x 10Gb/s SFP optical fibre sockets supporting up to 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates. |
| Computer Interface : | 1 x USB-C 3.0 for configuration and firmware updates. |
| HD Video Standards : | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 |
| Ultra HD Video Standards : | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards : | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
| SDI Compliance : | SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. |
| SDI Video Rates : | SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. |
| SDI Color Precision : | 4:2:2 |
| SDI Color Space : | YUV |
| SDI Auto Switching : | Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G‑SDI input and user selectable on 3G‑SDI output. |
| IP Video Compliance : | SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities |
| LED Indicators : | 1 x IP Input Lock LED indicator light 1 x SDI Input Lock LED indicator light 1 x Tally LED indicator light |
| Warranty : | 1 year |
| Relative Humidity : | 0% to 90% non‑condensing |
| Storage Temperature : | 20° to 45° C (-4° to 113° F) |
| Operating Temperature : | 5° to 40° C (41° to 104° F) |
| Power Usage : | 18W |
| Operational Voltage Range : | 12 - 16 V |
| Power Supply : | 1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries. |
| Live Tally Indicator : | Tally LED indicator light |
| Talkback : | 5‑pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video. |
| Control : | Talkback button controls for Volume Up, Volume Down and Push to Talk. |
| LED Indicators : | 1 x IP Input Lock LED indicator light 1 x SDI Input Lock LED indicator light 1 x Tally LED indicator light |
| IP Video Compliance : | SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities |
| SDI Auto Switching : | Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G‑SDI input and user selectable on 3G‑SDI output. |
| SDI Color Space : | YUV |
| SDI Color Precision : | 4:2:2 |
| SDI Video Rates : | SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. |
| SDI Compliance : | SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. |
| 4K Video Standards : | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
| Ultra HD Video Standards : | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| HD Video Standards : | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 |
| Computer Interface : | 1 x USB-C 3.0 for configuration and firmware updates. |
| Ethernet : | 1 x 10Gb/s SFP optical fibre sockets supporting up to 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates. |
| Reclocking : | Yes |
| Control : | Talkback button controls for Volume Up, Volume Down and Push to Talk. |
| Talkback : | 5‑pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video. |
| Live Tally Indicator : | Tally LED indicator light |
| Power Supply : | 1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries. |
| Operational Voltage Range : | 12 - 16 V |
| Power Usage : | 18W |
| Operating Temperature : | 5° to 40° C (41° to 104° F) |
| Storage Temperature : | 20° to 45° C (-4° to 113° F) |
| Relative Humidity : | 0% to 90% non‑condensing |
| Warranty : | 1 year |
