| Warranty : | 1 Year Limited Manufacturer’s Warranty. |
| Power Usage : | TBA |
| Power Supply : | 1 x Internal 100 - 240V AC 50/60Hz with IEC C14 socket. |

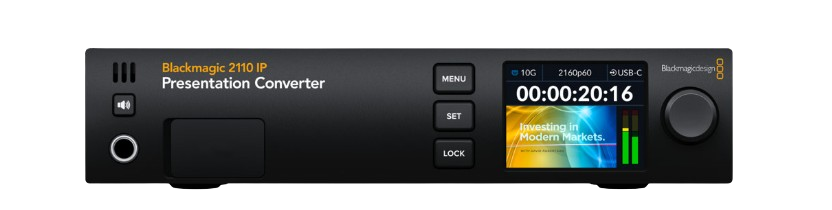

| Physical Installation : | Half rack unit width, 1 rack unit height. |
| Control : | Built in Control Panel 3 buttons, spin knob and 2.2 inch color display for menu and settings. Front speaker on/off button. |
| IP Video Compliance : | SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities |
| HDMI Video Standards : | HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI HDMI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. HDMI Video Sampling 4:4:4, 4:2:2 and 4:2:0 HDMI Color Precision 8, 10 and 12-bit HDMI Color Space REC 709 and REC 2020 HDR Support HDR static metadata packing, HLG and PQ transfer characteristics. HDR Configuration HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display. Multiple Rate Support HDMI video connections are switchable between HD/UHD and 4K. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| SDI Video Standards : | HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑10, SMPTE ST2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. |
| Ethernet : | 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates. |
| USB : | 2 x USB‑C 3.1 Gen 1 (up to 5 Gb/s). |
| HDMI Audio Outputs : | 8 Channels embedded in SD/HD/UHD/4K. |
| HDMI Audio Inputs : | v8 Channels embedded in SD/HD/UHD/4K. |
| SDI Audio Outputs : | SDI Audio Outputs |
| Analog Audio Outputs : | 2 channels of professional balanced analog audio with 3-pin XLR connectors. 1 x 6.35 mm headphone jack. |
| Analog Audio Inputs : | 2 x Combination 3-pin XLR / TRS 1/4 inch Jack connectors, switchable between +24dB line and mic level with support for +48V phantom power. |
| SMPTE ST-2110 IP Video Outputs : | 1 x 10G Ethernet |
| SMPTE ST-2110 IP Video Inputs : | 1 x 10G Ethernet |
| HDMI 2.0 Video Outputs : | 1 |
| SDI Video Outputs : | 1 |
| SDI Rates : | 270Mb, 1.5G, 3G, 6G, 12G. |
| SMPTE ST-2110 IP Video Inputs : | 1 x 10G Ethernet |
