Home Products Blackmagic Design DeckLink 8K Pro Mini PCIe Capture & Playback Card
The Blackmagic Desig
The Blackmagic Desig
In Stock
COD not available
Capture Card by Blackmagic Designs

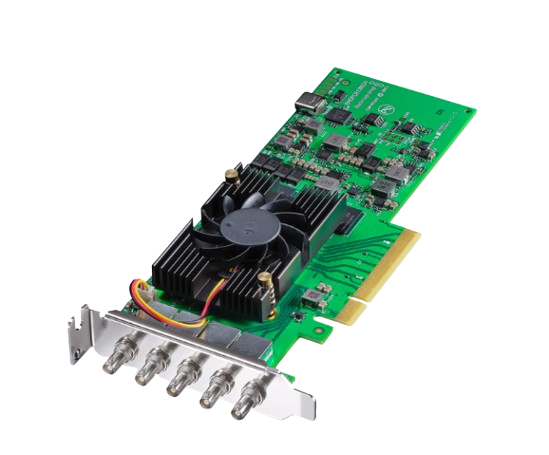

Blackmagic Design DeckLink 8K Pro Mini PCIe Capture & Playback Card - 4 x bi-directional 12G-SDI Micro BNC connectors. Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable. SDI Video Inputs

INR 88475 In Stock
COD not available
Add to cart
Buy Now
Share with
Buy Now
Add to cart
Share this on :

Description

Product details

The Blackmagic Design DeckLink 8K Pro Mini is professional low-profile PCIe capture and playback card designed for broadcast, live production, post-production, and content creation workflows. Supporting SD, HD, Ultra HD, 4k and 8K video formats, it delivers exceptional performance in a compact form factor. It is a powerful low-profile PCIe card built for demanding video production environments. Featuring advanced video capture and playback capabilities, it supports a wide range of resolutions from HD TO 8K, making it ideal for broadcasters, filmmakers, editors, and live streaming professionals. It's compact design allows installation in space-constrained workstations while maintaining the high-performance standards expected from Blackmagic Design products. KEY FEATURES: - Professional PCIe capture and playback card - Supports SD, HD, Ultra HD, 4K and 8K workflows - Compact low-profile design - High-quality video processing - Compatible with industry-standard production software - Ideal for live production and post-production - Reliable Blackmagic Design technology

Other Specifications

Relative Humidity :0% to 90% non‑condensing
Storage Temperature :20° to 60° C (-4° to 140° F)
Operating Temperature :5° to 50° C (41° to 122° F)
Power Consumption :10W
Multiple Rate Support :SDI video connections are switchable between SD/HD/2K/4K and 8K.
HDR Support :HDR static metadata packing, HLG and PQ transfer characteristics.
Color Space :REC 601, REC 709, REC 2020.
SDI Color Precision :8, 10, 12-bit RGB 4:4:4 in all modes up to 8Kp30 DCI, and 8, 10-bit YUV 4:2:2 in all modes.
SDI Video Sampling :4:2:2, 4:4:4
Audio Sampling :Television standard sample rate of 48 kHz at 24‑bit.
SDI Metadata Support :RP 188/SMPTE 12M-2 and closed captioning.
SDI Compliance :SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1
3D SDI Video Standards :720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI , 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120
8K DCI Video Standards :8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI
8K Video Standards :4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
4K Video Standards :4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI
Ultra HD Video Standards :2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120
2K Video Standards :2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
HD Video Standards :720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
SD Video Standards :525i59.94 NTSC, 625i50 PAL
Internal Software Upgrade :Firmware built into software driver. Loaded at system start or via updater software.
Software Included :DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Supported Codecs :AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4.
SDI Audio Outputs :16 Channels embedded in SD/HD/2K. 64 Channels embedded in 4K/8K.
SDI Video Outputs :4 x bi-directional 12G-SDI Micro BNC connectors. Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
SDI Audio Inputs :16 Channels embedded in SD/HD/2K. 64 Channels embedded in 4K/8K.
Sync Input :Tri-Sync or Black Burst.
Computer Interface :PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
