Capture Card by BlackMagic Designs

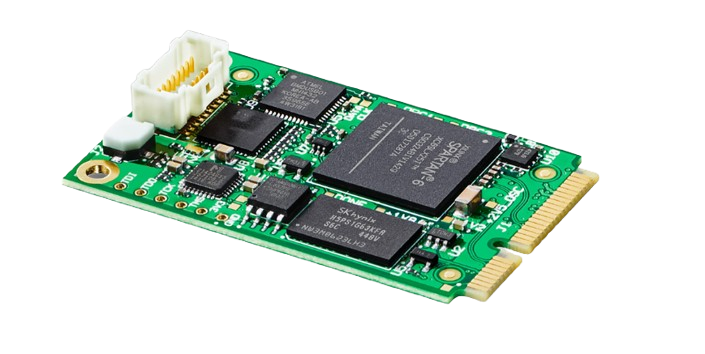

Blackmagic Design DeckLink Micro Recorder Mini PCIe SDI & HDMI Video Capture Card - PCIx1 Gen 1 PCI Express® Mini Card Electromechanical Specification. Note, however, that the HDMI connector height (8.0mm) exceeds the 3.0mm height specification. Connections

INR 15316 In Stock
COD not available

Description

Product details

The Blackmagic Design DeckLink Micro Recorder is a professional Mini PCIe video capture card designed for compact systems and embedded applications. Featuring SDI and HDMI Video Inputs, it captures high-quality SD and HD video up to 1080p30 with low latency. Ideal for live streaming, broadcasting, video production, medical imaging, and custom capture solutions. Compatible with Windows, macOS, and Linux platforms.

Other Specifications

Compliance :SMPTE 259M, 292M, 296M, and HDMI.
Color Precision :8, 10-bit YUV 4:2:2.
Video Sampling :4:2:2.
HD Format Support :720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30.
SD Format Support :525i/59.94 NTSC, 625i/50 PAL.
Part Numbers :DeckLink Micro Recorder, order code: BDLKMICROREC HDMI Cable, order code: CABLE-BDLKMIR/HDMI SDI Cable, order code: CABLE-BDLKMIR/SDI
Power Consumption :3 W max
Operating Temperature :25°C to 55°C (-13°F to 131°F)
Storage Temperature :40°C to 75°C (-40°F to 167°F)
Relative Humidity :0% to 90% non-condensing
