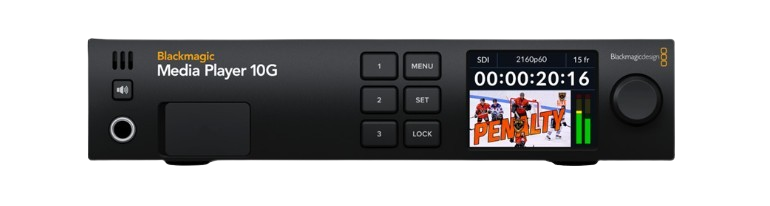

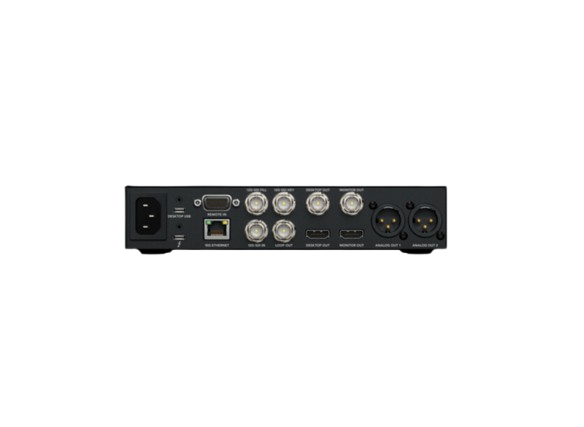

Blackmagic Media Player 10G is a powerful capture and playback solution packed with the latest broadcast technology! You get dual 12G-SDI outputs for fill and key playback, 12G-SDI capture, Extended Desktop and 10G Ethernet that lets customers use DaVinci Resolve as a media player and replay solution for the live production and broadcast markets, all over a single Thunderbolt connection. Connections SDI Video Inputs 1 SDI Fill Outputs 1 SDI Key Outputs 1 SDI Loop Outputs 1 SDI Extended Desktop Outputs 1 SDI Monitor Outputs 1 SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. HDMI Extended Desktop Outputs 1 HDMI Monitor Outputs 1 Analog Audio Outputs 2 channels of professional balanced analog audio with 3-pin XLR connectors. 1 x 6.35 mm headphone jack. SDI Audio Inputs 16 Channels embedded in HD and Ultra HD. SDI Audio Outputs 16 Channels embedded in HD and Ultra HD. HDMI Audio Outputs 8 Channels embedded in HD and Ultra HD. Device Control 1 x Sony™ compatible RS-422 deck control input port. USB 1 x USB‑C 3.1 Gen 1 (up to 5 Gb/s). Computer Interface 1 x Thunderbolt™ 3 (Mac OS, Windows and Linux) 1 x USB‑C for keyboard, mouse and other USB devices Ethernet 1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T.
