| Power Supply : | 1x External 12v dc 36w power supply |
| Tally : | Live Tally Indicator 1 x front facing for talent. |
| Color Corrector : | DaVinci YRGB |
| SMB : | File sharing using SMB. |
| FTP : | Download files from any drive attached to your camera using FTP. |
| Web Media Manager : | Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. |
| NTP : | Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. |
| External Control : | Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles. |
| Control : | 5 control buttons including Set, Up, Down, Menu, and Power. |
| 3840 x 2160 (Ultra HD) : | Blackmagic RAW 3:1 - 127 MB/s Blackmagic RAW 5:1 - 77 MB/s Blackmagic RAW 8:1 - 48 MB/s Blackmagic RAW 12:1 - 32 MB/s Blackmagic RAW Q0 - 96 to 190 MB/s Blackmagic RAW Q1 - 64 to 153 MB/s Blackmagic RAW Q3 - 43 to 109 MB/s Blackmagic RAW Q5 - 26 to 64 MB/s |
| Storage Rates : | Storage rates based on 30 frames per second. |
| Recording Formats : | Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate. |
| Storage Type : | 1 x USB‑C 3.1 Gen 1 expansion ports for external media. |
| Supported Codecs : | Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 |
| Media Format : | Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
| Media : | 1 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. |
| SDI Audio Sampling : | Television standard sample rate of 48 kHz and 24‑bit. |
| SDI Compliance : | SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10. |
| Ultra HD Video Standards : | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| HD Video Standards : | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| SD Video Standards : | None |
| Integrated stereo microphone. : | None |
| Microphone : | Built in Speaker |
| Computer Interface : | 1 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port. |
| Remote Control : | Remote camera control over SDI, HDMI or USB Ethernet with suitable adapter. |
| HDMI Audio Outputs : | 2 channels 48 kHz and 24‑bit. |
| SDI Audio Output : | 2 channels of program audio embedded in 3G/6G/12G-SDI. |
| Reference Inputs : | Program SDI Input on camera. |
| Analog Audio Input : | 1 x 3.5mm Stereo Input. Can also be used for Timecode input. |
| HDMI Video Outputs : | 1 x HDMI Type A output. HDMI output is always HD, up to 1080p60 |
| HDMI 2.0 Video Outputs : | 1 |
| SDI Rates : | 3G, 6G, 12G |
| : | |
| SDI Video Outputs : | 1 x 12G‑SDI Micro BNC |
| SDI Video Inputs : | 1 x 12G‑SDI Micro BNC |
| Mounting Options : | 1 x 1/4 inch (top), 3 x 1/4 inch (bottom). |
| Metadata Support : | Automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files. |
| Focus : | Auto focus available using compatible lenses. |
| Frame Rates : | 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD. |
| Shooting Resolutions : | 3840 x 2160 (Ultra HD) up to 60 fps. |
| Signal to Noise Ratio : | 63dB for 2160p. |
| Sensitivity at 0dB Gain : | f11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance. |
| Dual Native ISO : | 0dB and 18dB gain. |
| Dynamic Range : | 13 Stops. |
| Lens Control : | Iris, focus, zoom on supported lenses. |

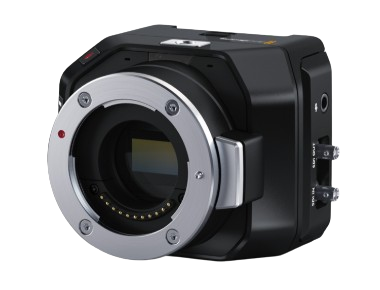

| Lens Mount : | Active MFT Mount. |
