Description
Product details

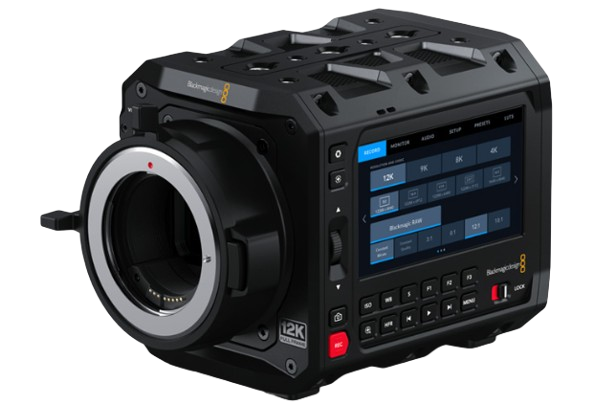

Blackmagic PYXIS 12K EF is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 12,288 x 8040 full frame RGBW sensor with built in optical low pass filter, 16 stops of dynamic range, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. Blackmagic PYXIS 12K EF features a fixed locking EF mount that works with Canon compatible photo and cine lenses. Camera Features Effective Sensor Size 35.64mm x 23.32mm (Large Format) Pixel Pitch 2.9 microns Lens Mount Active, locking EF lens mount. Lens Control Iris and focus on supported lenses. Dynamic Range 16 Stops. Native ISO 800 Shooting Resolutions 12,288 x 8040 (12K 3:2 open gate) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 9408 x 6264 (9K 3:2) 8688 x 4896 (9K 16:9) 9312 x 4896 (9K 17:9) 9312 x 3864 (9K 2.4:1) 7680 x 6408 (9K 6:5) 8192 x 5360 (8K 3:2 open gate) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 6432 x 5360 (8K 6:5) 4096 x 2680 (4K 3:2 open gate) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1) 3216 x 2680 (4K 6:5) Frame Rates Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected. High Frame Rates 12K (3:2 open gate) up to 40 fps 12K (16:9) up to 45 fps 12K (17:9) up to 50 fps 12K (2.4:1) up to 60 fps 12K (6:5) up to 40 fps 9K (3:2 Super 35) up to 50 fps 9K (16:9 Super 35) up to 65 fps 9K (17:9 Super 35) up to 65 fps 9K (2.4:1 Super 35) up to 80 fps 9K (6:5 Super 35) up to 50 fps 8K/4K (3:2 open gate) up to 72 fps 8K/4K (16:9) up to 84 fps 8K/4K (17:9) up to 90 fps 8K/4K (2.4:1) up to 112 fps 8K/4K (6:5) up to 72 fps Focus Auto focus available using compatible lenses. Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings using compatible lenses. Screen Dimensions 4” 1920 x 1080. Screen Brightness 1500 nits Screen Type LCD capacitive touchscreen. Metadata Support Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files. Controls Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys. Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
