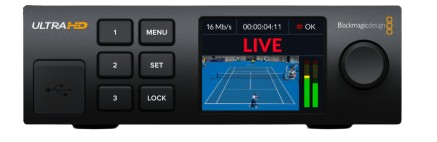

Blackmagic Streaming Decoder 4K is a professional streaming decoder that lets you receive an H.264 or H.265 stream from Blackmagic Streaming Encoder, ATEM switcher or Blackmagic camera and convert it back to SDI and HDMI video. Includes Blackmagic Cloud streaming and 12G-SDI reference input that lets you connect SDI tally, camera control and talkback back to the encoder.
| Relative Humidity : | 0% to 90% non-condensing |
| Storage Temperature : | 20° to 45° C (-4° to 113° F) |
| Operating Temperature : | 0° C to 40° C (32° - 104°F) |
| Physical Installation : | Physical Installation One third rack unit width, 1 rack unit height. |
| Power Usage : | TBA |
| 12V DC Input : | 1 x 4-pin XLR for +12V DC input for external power supply or battery use. |
| Power Supply : | 1 x Internal 100 - 240V AC |
| Software : | Compatible Services and Software Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine. |
| Displays : | Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings. |
| External Control : | Supports remote camera control, color corrector, tally and talkback. |
| Device Control : | Front panel, USB‑C or Ethernet. |
| Control Panel : | Built in control panel including 6 buttons, spin knob control and 2.2 inch color display. |
| Timecode : | Support source timecode over RTMP and SRT streams on 12G-SDI Out. |
| Closed Captions : | Web Presenter 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream. |
| Direct Streaming : | Receives (RTMP) H.264 or (SRT) H.265 streams from the Blackmagic Streaming Encoder or compatible Blackmagic cameras. |
| HDR Metadata Support : | Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084. |
| Video Output Conversion : | 12G-SDI Out and 4K HDMI Out can follow the streaming standard or be user configured to convert to any of the following standards: 720p25, 720p30, 720p50, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| Video Streaming Standards : | 720p25, 720p30, 720p50, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| HDMI CVideo Streaming Standardsolor Space : | YUV |
| HDMI Color Precision : | 4:2:2 |
| HDMI 4K Video Standards : | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI |
| HDMI Ultra HD Video Standards : | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| HDMI HD Video Standards : | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| 3G SDI : | Auto detects SMPTE level A or B on SDI input. |
| Video Input Color Space : | Rec. 709, Rec. 2020 |
| SDI Compliance : | SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1. |
| Ultra HD Video Input Standards : | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| HD Video Input Standards : | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Ethernet : | Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates. |
| Webcam Outputs : | 1 x USB-C up to 2160p60 |
| HDMI Audio Outputs : | 8 channels embedded audio on Monitor Out. |
| SDI Audio Outputs : | 16 channels embedded audio on 12G-SDI Ref Out. 16 channels embedded audio on 12G-SDI Out. |
| SDI Audio Inputs : | 16 channels embedded audio on 12G-SDI Ref In. |
| Live Stream Audio Inputs / Outputs : | 2 channels embedded Live Stream audio on output. 2 channels embedded Program audio on input. 2 channels embedded talkback audio on input. |
| Frame Rate and Format Converters : | On 12G-SDI Out and 4K HDMI Out. |
| HDMI 2.0 Video Outputs : | 1 |
| SDI Rates : | 1.5G, 3G, 6G, 12G |
| SDI Audio Inputs : | 16 channels embedded audio on 12G-SDI Ref In |
| Live Stream Audio Inputs / Outputs : | 2 channels embedded Live Stream audio on output. 2 channels embedded Program audio on input. 2 channels embedded talkback audio on input. |
| SDI Video Outputs : | 1 |
| SDI Reference Outputs : | 1 |
| SDI Rates : | 1.5G, 3G, 6G, 12G |
| HDMI 2.0 Video Outputs : | 1 |
| Frame Rate and Format Converters : | On 12G-SDI Out and 4K HDMI Out |
