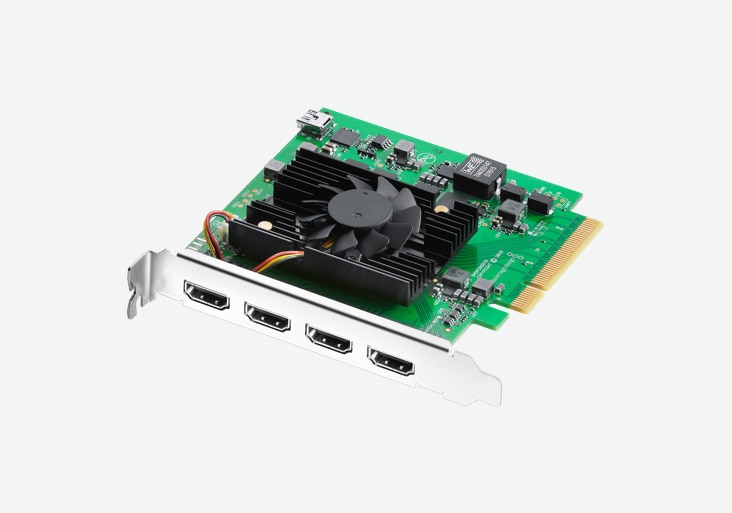

DeckLink Quad HDMI Recorder is a high performance PCIe card that lets you capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K and even computer formats, all at the same time! Featuring 4 independent HDMI 2.0b input connections, DeckLink Quad HDMI is like getting 4 separate and customizable capture cards in one, making it perfect for software live switching, real time computer game capture, streaming and more!
| HDMI Audio Inputs : | 8 Channels embedded in SD/HD/UHD/4K. |
| Computer Interface : | PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots. |
| Supported Codecs : | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10‑bit 4:2:2. |
| Software Included : | Media Express, Disk Speed Test, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| Physical Installation : | PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements. |
| Internal Software Upgrade : | Firmware built into software driver. Loaded at system start or via updater software. |
| SD Video Standards : | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards : | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards : | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards : | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| Digital Video Interface (DVI) Standards : | 640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60 |
| Audio Sampling : | Television standard sample rate of 48 kHz and 24 bit. |
| HDMI Color Precision : | 8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all modes. 8-bit YUV 4:2:0 in Ultra HD and 4K DCI 50p and 60p. 8‑bit RGB 4:4:4 in all DVI modes. |
| Warranty : | 3 Year Limited Manufacturer’s Warranty |
| Relative Humidity : | 0% to 90% non-condensing |
| Storage Temperature : | 20° to 45° C (-4° to 113° F) |
| Operating Temperature : | 5° to 40° C (41° to 104° F) |
| Power Consumption : | 23 W |
| Copy Protection : | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Multiple Rate Support : | HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes. |
| HDMI Configuration : | HDMI 2.0b supports Deep Color and HDR. |
| HDMI Video Sampling : | 4:4:4, 4:2:2 and 4:2:0 |
| Color Space : | REC 601, REC 709, REC 2020 |
| HDMI Color Precision : | 8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all modes. 8-bit YUV 4:2:0 in Ultra HD and 4K DCI 50p and 60p. 8‑bit RGB 4:4:4 in all DVI modes. |
| Audio Sampling : | Television standard sample rate of 48 kHz and 24 bit. |
| Digital Video Interface (DVI) Standards : | 640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60 |
| Color Space : | REC 601, REC 709, REC 2020 |
| HDMI Video Sampling : | 4:4:4, 4:2:2 and 4:2:0 |
| HDMI Configuration : | HDMI 2.0b supports Deep Color and HDR. |
| Multiple Rate Support : | HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes. |
| Copy Protection : | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Power Consumption : | 23 W |
| Operating Temperature : | 5° to 40° C (41° to 104° F) |
| Storage Temperature : | 20° to 45° C (-4° to 113° F) |
| Relative Humidity : | 0% to 90% non-condensing |
| Warranty : | 3 Year Limited Manufacturer’s Warranty |
