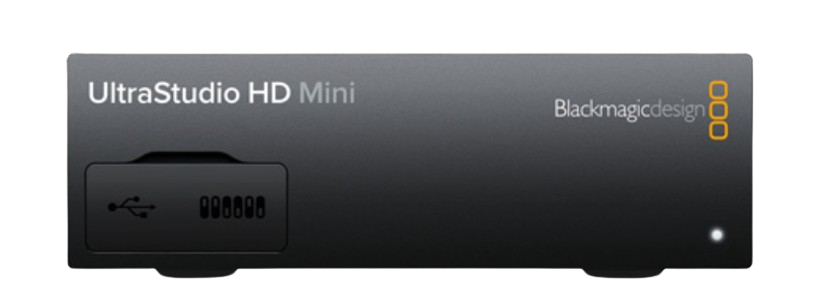

| SDI Video Outputs : | 2 x 3Gb/s SD/HD switchable, supports fill and key. |
| SDI Rates : | 270Mb, 1.5G, 3G |
| Optical SDI : | None |
| HDMI Video Inputs : | None |
| HDMI Video Outputs : | 1 x HDMI 1.4b type A connector. |
| Analog Video Inputs : | Y, B-Y, R-Y/NTSC/PAL. |
| Analog Video Outputs : | None |
| Analog Audio Inputs : | 2 x 1/4 inch jack connectors for balanced and unbalanced analog audio. |
| Analog Audio Outputs : | None, embedded audio only. |
| SDI Audio Inputs : | 16 Channels embedded in SD and HD. |
| SDI Audio Outputs : | 16 Channels embedded in SD and HD. |
| HDMI Audio Outputs : | 2 Channels embedded in SD and HD. |
| Timecode Connection : | None. RP-188 only. |
| Reference Input : | Tri-Sync or Black Burst. |
| Supported Codecs : | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHD, DNxHR, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10‑bit 4:2:2. |
| Software Included : | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| Internal Software Upgrade : | Firmware built into software driver. Software driver loads upgrades at system start or via updater software. |
| SD Video Standards : | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards : | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards : | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards : | None |
| 4K Video Standards : | None |
| SDI Compliance : | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B. |
| SDI Metadata Support : | RP 188/SMPTE 12M-2 and closed captioning. |
| Audio Sampling : | Television rate of 48kHz and 24 bit. |
| SDI Video Sampling : | 4:2:2/4:4:4 |
| Color Space : | REC 601, REC 709. |
| HDMI Resolution : | Pixel for pixel HD resolution input from connected device. |
| Multiple Rate support : | SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s. |
| Hardware Frame Buffer : | v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B,R12L (12 bit RGB). |
| Relative Humidity : | 0% to 90% non-condensing |
| Storage Temperature : | 20° to 45° C (-4° to 113° F) |
| Operating Temperature : | 5° to 40° C (32° to 104° F) |
| Power Requirements : | Powered by Thunderbolt cable. Requires computer with a Thunderbolt™ 3 USB-C port. |
| Processing : | Colorspace Conversion Hardware based real time. HD Down Conversion Real time 10-bit hardware down conversion on SDI B output when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles. Real Time Effects Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. DaVinci Resolve. Physical Installation Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements. |
| Device Control : | 1 x RS-422 deck control. |
| Built in Control Panel : | None. Supports Teranex Mini Smart Panel with 2.2 inch color display for video preview, audio meters and status. |
| Computer Capture : | 1 x Thunderbolt™ 3 for Mac and Windows. Powers from Thunderbolt host computer, includes Blackmagic Desktop Video SDK. |
| SDI : | 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. |
| HDMI : | 8-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. |
| Hardware Frame Buffer : | v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B,R12L (12 bit RGB). |
| Multiple Rate support : | SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s. |
| HDMI Resolution : | Pixel for pixel HD resolution input from connected device. |
| Color Space : | REC 601, REC 709. |
| SDI Video Sampling : | 4:2:2/4:4:4 |
| Audio Sampling : | Television rate of 48kHz and 24 bit. |
| SDI Metadata Support : | RP 188/SMPTE 12M-2 and closed captioning. |
| SDI Compliance : | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B. |
| 4K Video Standards : | None |
| Ultra HD Video Standards : | None |
| 2K Video Standards : | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| HD Video Standards : | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| SD Video Standards : | 525i59.94 NTSC, 625i50 PAL |
| Internal Software Upgrade : | Firmware built into software driver. Software driver loads upgrades at system start or via updater software. |
| Software Included : | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| Supported Codecs : | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHD, DNxHR, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10‑bit 4:2:2. |
| Reference Input : | Tri-Sync or Black Burst. |
| Timecode Connection : | None. RP-188 only. |
| HDMI Audio Outputs : | 2 Channels embedded in SD and HD. |
| SDI Audio Outputs : | 16 Channels embedded in SD and HD. |
| HDMI : | 8-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. |
| SDI : | 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. |
| Computer Capture : | 1 x Thunderbolt™ 3 for Mac and Windows. Powers from Thunderbolt host computer, includes Blackmagic Desktop Video SDK. |
| Built in Control Panel : | None. Supports Teranex Mini Smart Panel with 2.2 inch color display for video preview, audio meters and status. |
| Device Control : | 1 x RS-422 deck control. |
| Processing : | Colorspace Conversion Hardware based real time. HD Down Conversion Real time 10-bit hardware down conversion on SDI B output when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles. Real Time Effects Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. DaVinci Resolve. Physical Installation Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements. |
| Power Requirements : | Powered by Thunderbolt cable. Requires computer with a Thunderbolt™ 3 USB-C port. |
| Operating Temperature : | 5° to 40° C (32° to 104° F) |
| Storage Temperature : | 20° to 45° C (-4° to 113° F) |
| Relative Humidity : | 0% to 90% non-condensing |
